Track Length 4 MTR

Part code : STAR-001-CC

The track serves as the primary path for all cable trolleys, including the Towing Trolley and Pendant Trolley. Each track must be securely attached to cantilever supports at regular intervals, sing either the same track, the Startech Premium Model-C Rail Support with Clit, or angle supports. These supports should be spaced between 1.2 meters &1.5 meters apart to ensure stability & proper function. Application: EOT Crane Cross Travelling or Long Travelling Purpose. Or any other Cable or Pneumatic hose pipe movement application.

Curve Track

Part Code : STAR-00I-CC -Curve

The Curve track serves as the primary path for all able trolleys, including the Towing Trolley and Pendant Trolley. Each track must be securely attached to cantilever supports at regular intervals, using either the same track, the Startech Premium Model-C Rail Support with Clit, or angle supports. These supports should be spaced between 1.2 meters & 1.5 meters apart to ensure stability and proper function. Application : Monorail System & various curvature profiled application. Dimensions : Minimum Radius of 600 mm to 2.5meters (It can also be customized as per the requirement)

Track Coupler

Part code : STAR-002-CC

These intermediate joints are designed to connect two tracks securely, maintaining the required span length. They ensure a stable connection between the tracks and provide a smooth, uninterrupted runway for trolleys at the joint, preventing any disruptions in the movement.

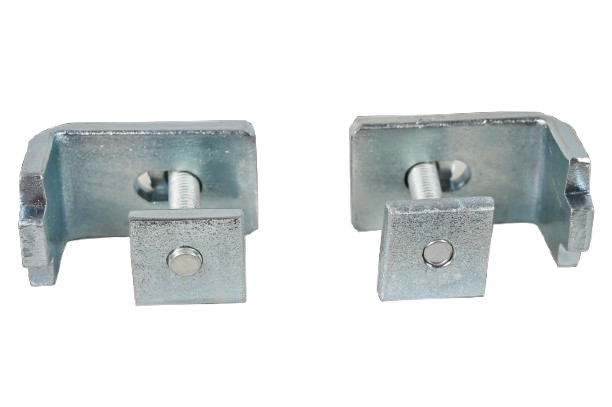

Track Clamp

Part Code : STAR-003-CC

Clamps are track-holding brackets designed to secure the C-Rail in place. They are fitted onto the track to ensure stability and proper alignment.

Track Clamp for L Angle Support

Part code : STAR-003-CC

Track clamps with threaded Bolt are used to secure the track to the L-Angle support, ensuring a firm and stable attachment.

Common Cable Trolly 50mmHolder

Part Code : STAR-004-CC

The clamping system is designed for hoist cables and push-button cables, with a desired loop for cross-traveling (CT). The standard recommended distance between each trolley is 1.2 to 1.5 meters. Cable holders are available with a 25mm radius & a 50mm clamp Width to securely hold the cables in place.

Common Cable Trolley 100mmHolder

Part code : STAR-004-CC

Designed for clamping hoist cables and push-button cables, with a desired loop for cross-traveling (C.T). The recommended distance between each trolley is 1.2 to 1.5 meters. Cable holders

Towing Cable Trolley

Part Code : STAR-005-CC

Application :This is the first trolley in the system, used for carrying hoist cables. The towing arm is mounted to the hoist, enabling it to tow the trolley efficiently.

Pendent Trolly for Socket

Part code : STAR-006-CC-S

Common cable trolley`'s, carrying push button cables. It is used for mounting & movement of pendent control switch (push button) It can be moved freely by manual movement. For Without Socket

Pendent Trolly

Part Code : STAR-006-CC

This trolley is designed to carry push-button cables. It is used for mounting and facilitating the movement of pendant control switches (push buttons). The trolley can be easily moved manually for smooth operation. For 16 Pin/ or 24 Pin Socket.

Towing Arm

Part code : STAR-007-CC

One end of the towing arm is mounted on the hoist, while the other end is connected to the main cable trolley. It facilitates the towing of the trolleys, ensuring smooth movement and operation.

End Stopper

Part Code : STAR-008-CC

The end stopper is used to halt the movement of trolleys, providing a safety mechanism to prevent overrun or unintended movement.

Girder Clamp Radius

STAR-009-CC (Beam flange thickness 6 to 20mm)

STAR-OIO-CC (Beam flange thickness 20 to 32mm)

The girder clamp is an optional cleat used to mount the C-Rail support. Two clamps are required for installation to ensure secure attachment to the I-beam.

Girder Clamp L Shape (90 Degree)

Part Code: STAR-OII-CC (Beam flange thickness 6 to 20mm)

Part Code: STAR-012-CC (Beam flange thickness 20 to 32mm)

The L-shaped girder clamp is an optional component for cleat mounting. To securely install the C-Rail support, two units are required for proper attachment.

Customized Trolley

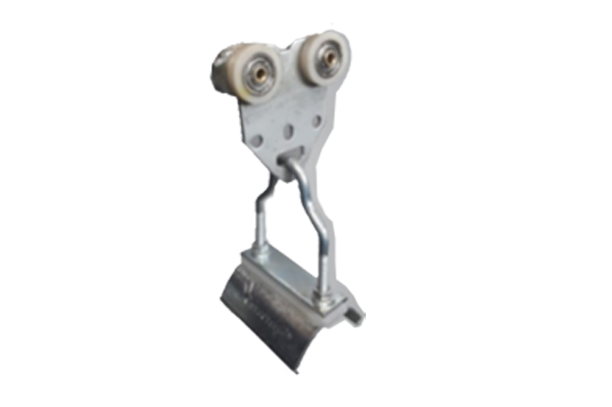

Nylon Roller with Cable Trolley

Part code : STAR-013-CC-NYLON

All festoon cable trolleys can be customized forvarious applications, including flame-proof environments, ensuring optimal performance and safety in specialized settings.

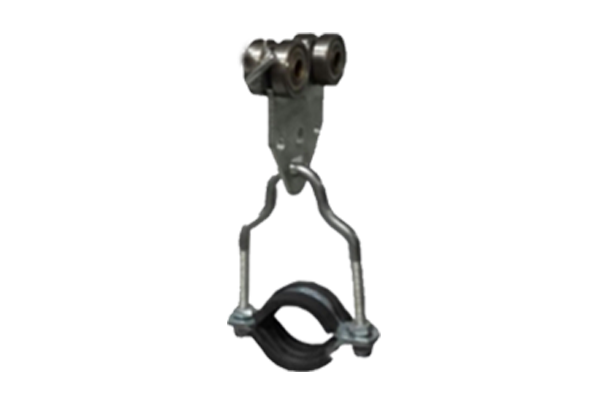

Hose/Pipe Carrying Trolley

Part code: STAR-OB-CC-HOSE

All festoon cable trolleys can be customized to meet various application requirements, including hose or pipe carrying, ensuring versatility and efficiency in different operational environments.
